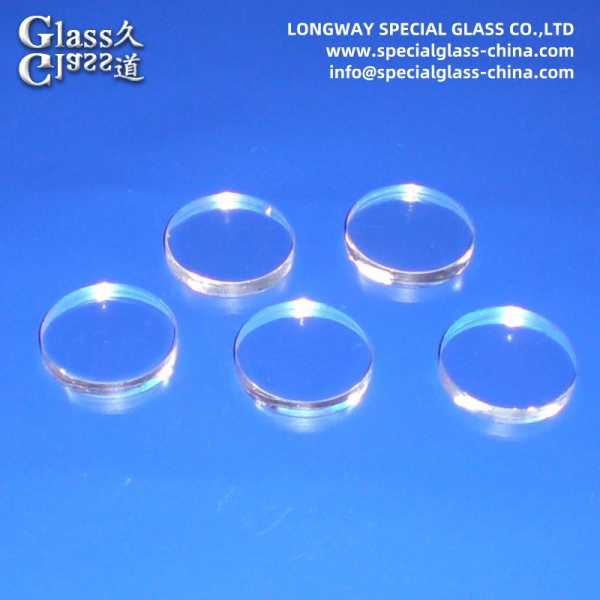

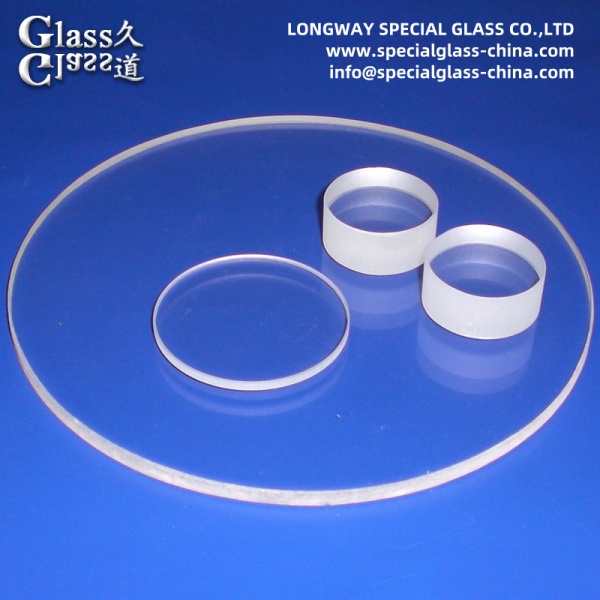

Quartz glass Window Lens And Glass Disc For Camera And Laser Lens
Material:
The Quartz glass Window Lens and Glass Disc for camera and laser lens are made from high-quality quartz glass, a type of heat-resistant and chemically resistant glass that is known for its excellent optical clarity. This material provides exceptional durability and resistance to thermal shock.
Quality:
These lenses have undergone rigorous polishing processes to achieve an extremely smooth surface finish, ensuring minimal distortion and maximum light transmission. The high-quality quartz glass used in their construction ensures a long lifespan and resistance to scratches and chips.
Function:
The primary function of these lenses is to provide a clear and undistorted view for cameras and lasers. They are designed to transmit light energy without any loss or aberration, making them ideal for applications where precise imaging is required.
Usage:
These lenses are commonly used in various industries, including:
- Camera and photography
- Laser technology
- Optical instruments
- Medical devices
Their optical clarity, durability, and precision make them an ideal choice for demanding camera and laser applications where accurate light control is essential.
| Item | Glass disc, Glass wafer, Glass substrate, Sight glass |
| Material | Optical glass, Qurartz glass, borosilicate glass, Float glass, borofloat |
| Diameter Tolerance | +0/-0.2 mm |
| Thickness Tolerance | +/-0.2 mm |
| Processed | By Cutting,Grinding, Polishing |
| Working temperature | Resisting high temperature shock |
| Surface Quality | 80/50,60/40,40/20 |
| Material Quality | No scratches and air bubble |
| Transmission | >90% for visible light |
| Chamfer | 0.1-0.3 mm x 45 degree |
| Surface Coating | Available |
| Usage | Photography, Optics, Lighting system, Laser system |
